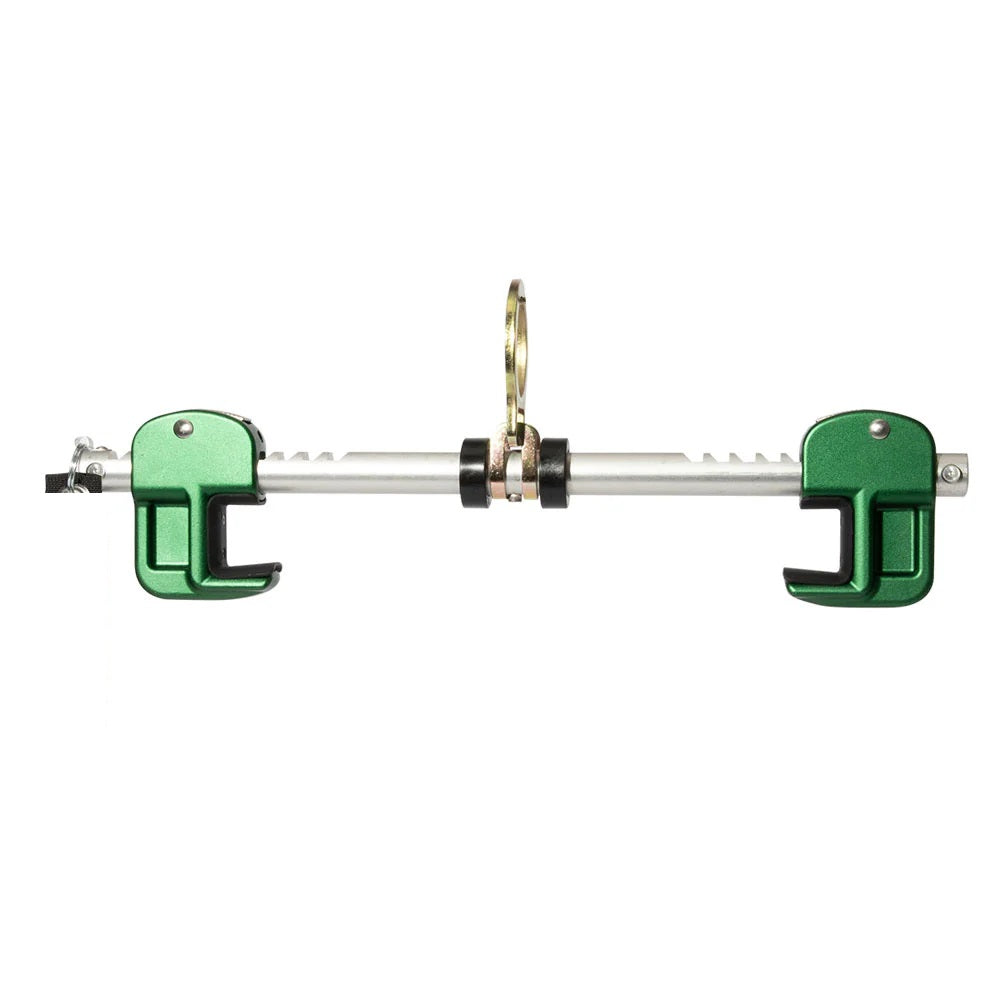

Beam Walker Smooth Sliding Anchor

The SunWorks Beam Walker Easy Slider is a lightweight and compact sliding anchor engineered to provide seamless trailing and hands-free mobility along structural steel beams. Designed for ultimate versatility, it features a 180° pivoting D-ring and can be utilized for both overhead and foot-level tie-off applications on top or bottom beam flanges.

Key Features & Performance:

• Effortless Tracking: Equipped with premium nylon rollers that deliver an exceptionally smooth slide along the beam, ensuring untethered focus on your work.

• One-Handed Operation: Features an ergonomic, single-handed trigger mechanism for instant locking and rapid release adjustment.

• Symmetrical Sizing: Designed with a dual-adjustment system featuring adjustable jaws on both ends for perfect centering and balance.

• Extended Service Life: Comes with replaceable jaw liners that protect the anchor from wear and tear, significantly extending the product's operational lifespan.

• Durability & Protection: Built from high-strength, lightweight aluminum and includes a protective label cover to safeguard compliance and inspection details from abrasion.

Technical Specifications & Fitment:

• Condition: New

• Anchor Type: Sliding Anchor (Reusable / Temporary)

• Flange Width Accommodation: Fits beam flanges from 3.5" up to 14" (3-1/2" - 14")

• Maximum Flange Thickness: Up to 1.25" (1-1/4")

• Flange Placement: Suitable for use on both Top or Bottom Flanges

• Connection Point: 180° rotating pivot D-ring

Weight Capacities & Safety Standards:

• Maximum Work Load:

  • 420 lbs. under OSHA guidelines

  • 310 lbs. under ANSI guidelines

• ANSI Compliance Standard: Z359.18

• OSHA Compliance Standards: 1910.140 and 1926.502 (When installed and used in strict accordance with the manufacturer's provided instructions).
