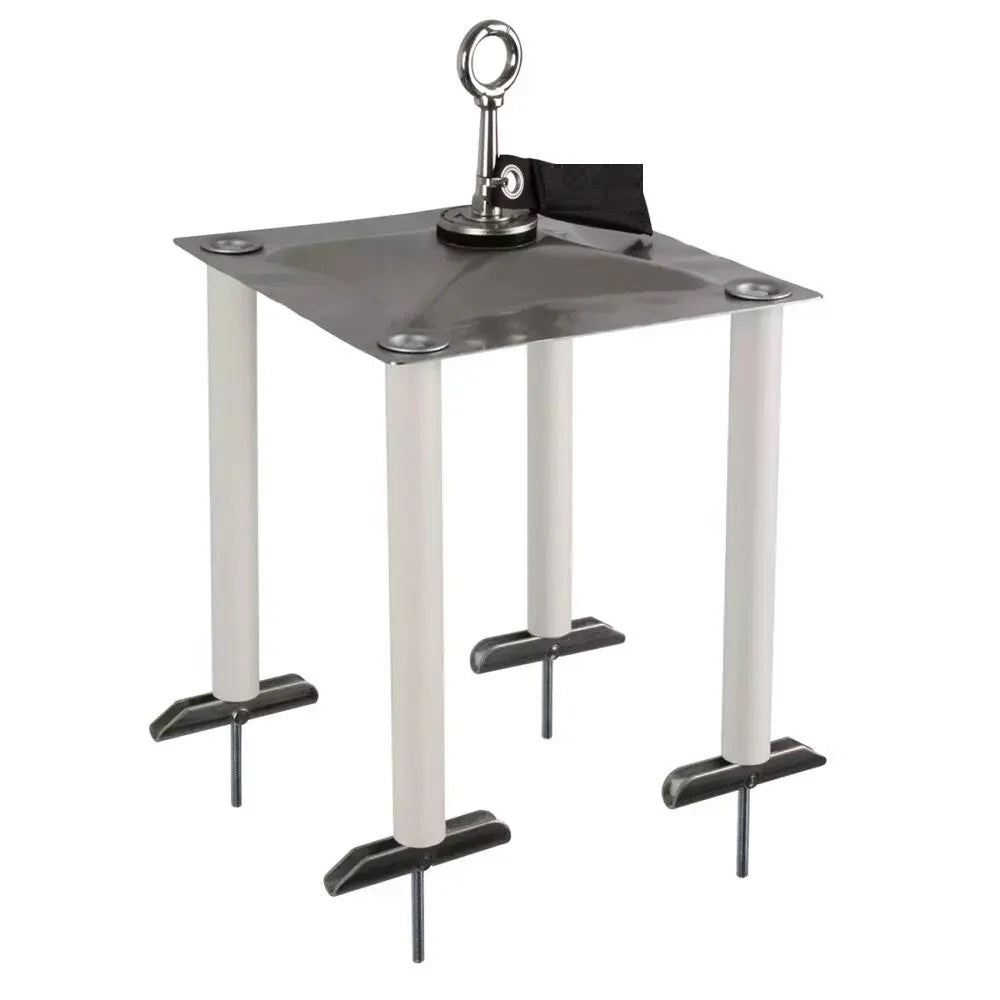

Permanent Membrane Roof Anchor

The SunWorks Membrane Roof Anchor is a premier, permanent fall protection solution engineered exclusively for membrane roofing systems. Featuring an innovative drop-through design, it installs quickly and easily from the top surface, completely eliminating the need for complex access to the underside of the roof deck.

Key Features & Performance:

• Top-Side Installation: Streamlined, easy drop-through setup from the roof surface ensures high productivity without requiring any underneath structural access.

• Exclusively for Membrane Roofs: Specifically engineered to provide a long-lasting, permanent anchorage point tailored for single-ply or multi-ply membrane roofs.

• Anti-Abrasion Design: Equipped with an elevated 4" eye bolt post that lifts the connection point, effectively preventing your safety hardware from scraping or rubbing against the roof surface.

• 360-Degree Working Radius: Offers a full 360-degree range of motion, allowing workers maximum directional flexibility and workspace efficiency.

• Variable Thickness Fit: Highly versatile design that easily adjusts to accommodate overall roof thicknesses from 3" to 12".

• Anchor Type: Ideal for deployment as a dedicated single-point safety tie-off anchor.

Technical Specifications & Constraints:

• Condition: New

• Anchor Durability: Permanent

• Post Height: 4 inches

• Fasteners: Included

• Maximum Work Load: 310 lbs.

• Usage Restrictions: NOT approved or rated for use with Horizontal Lifeline (HLL) Systems.

Regulatory Standards:

• OSHA Compliance: Meets or exceeds all applicable OSHA regulations, including 1910.140, 1910.66, and 1926.502, provided installation strictly follows the manufacturer's provided guidelines.
