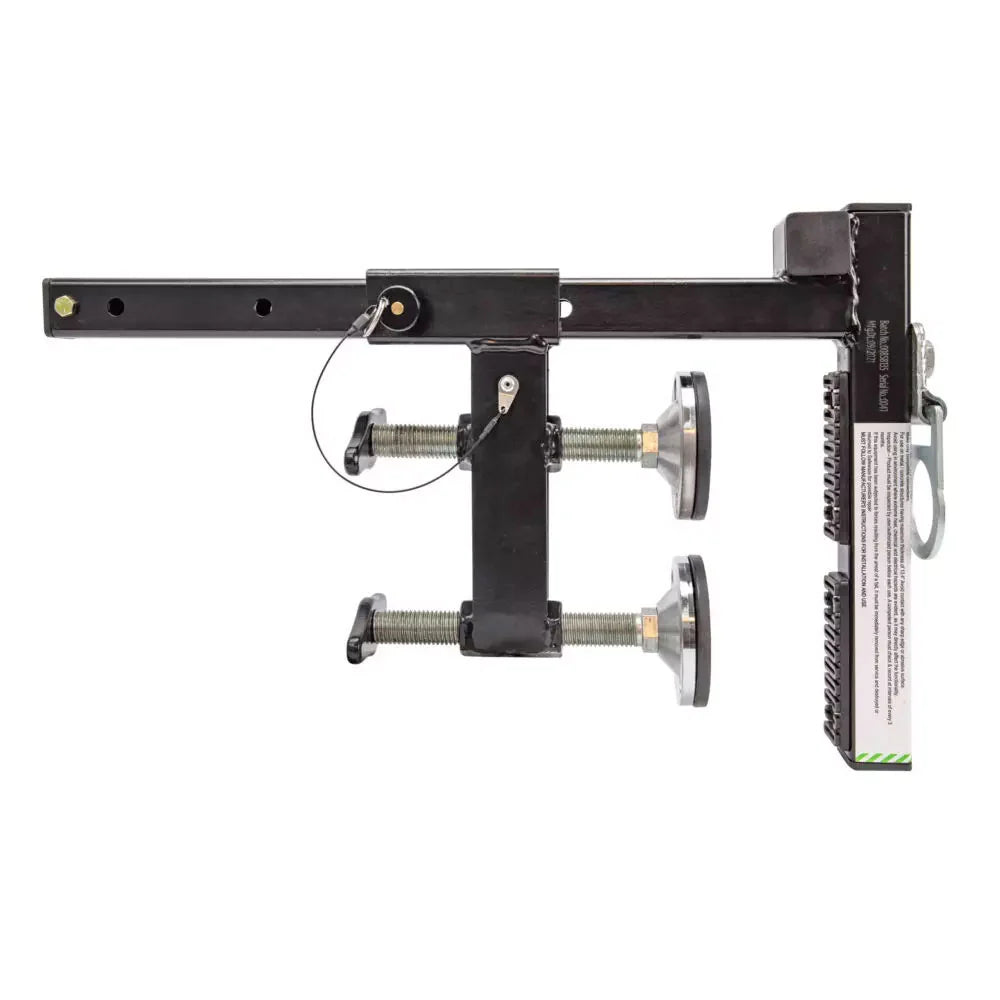

Non-Penetrating Parapet Wall Anchor

The SunWorks Parapet Wall Anchor provides a highly secure, tool-free safety connection that mounts effortlessly onto existing parapet walls without penetrating or drilling into the structure. This portable solution is ideal for work positioning, roof-edge descent, or as a primary anchorage connector in your personal fall arrest system.

Key Features & Design Benefits:

• Zero Damage Design: Features a specialized non-penetrating setup with protective rubber padding to completely eliminate surface scratches or structural damage to the parapet.

• Balanced Clamping Force: Equipped with 2 ergonomic tightening handles that ensure even force distribution across the wall surface for maximum stability.

• Tool-Free Setup: Installs quickly and easily by hand, significantly boosting job site productivity with zero external tools or fasteners required.

• Heavy-Duty Construction: Built from high-strength steel to deliver reliable, long-lasting durability under rugged field conditions.

• Integrated Safety: Comes with a heavy-duty, built-in tie-off D-ring for immediate and secure safety line attachment.

Technical Specifications & Dimensions:

• Condition: New

• Anchor Durability: Reusable / Temporary

• Fasteners: Not Required

• Wall Width Accommodations: Fits concrete parapets from 2.36″ (6cm) up to 14.17″ (36cm) wide.

• Minimum Wall Height: Requires a minimum parapet installation height of 8.6″ (22cm).

• Maximum Work Load: 310 lbs.

Safety Standards & Compliance:

• OSHA Compliance: Meets or exceeds all relevant OSHA Standards, including 1910.66 and 1926.502, when installed strictly in accordance with the manufacturer's guidelines.
