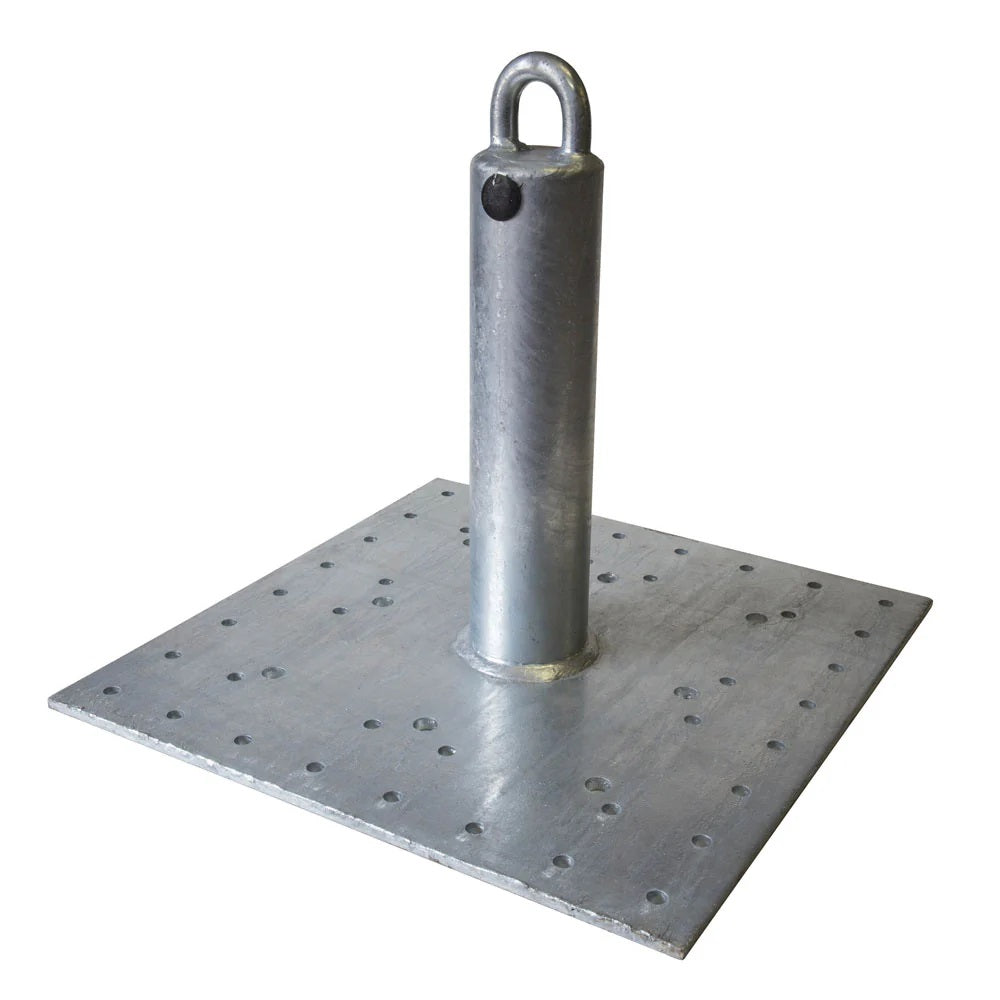

12 inches Permanent Fixed Post Anchor

The SunWorks 12" Fixed Post Anchor is a heavy-duty safety solution designed for permanent installation across a variety of structural substrates, including wood, steel, and concrete. Engineered for ultimate fall protection reliability, this robust anchor post can be seamlessly integrated into horizontal lifeline systems.

Key Features & Design Advantages:

• Multi-Surface Versatility: A single, fixed anchoring solution that is highly suitable for wood, structural steel, and concrete assemblies.

• Lifeline System Ready: Specially optimized to function as a dependable anchor point in conjunction with horizontal lifeline (HLL) systems.

• Streamlined Setup: Engineered for a simple, straightforward, and efficient installation process to save time on the job site.

• Heavy-Duty Foundation: Features a wide, stable 16" x 16" baseplate designed to distribute forces evenly across the substrate.

Technical Specifications & Dimensions:

• Condition: New

• Anchor Durability: Permanent Installation

• Post Height: 12 inches

• Baseplate Size: 16" x 16"

• Overall Height: 14.5" (Measured from the baseplate to the top of the connection loop)

• Maximum Work Load: 310 lbs.

• Fasteners: Not Included (Must be sourced based on the specific substrate)

Substrate Installation Requirements:

• Concrete Mounting: Requires a concrete strength of 2500 PSI or better and a minimum concrete thickness of 6" or thicker.

• Wood Mounting: Requires 5/8" CDX Plywood or better for secure attachment.

Safety Standards & Compliance:

• OSHA Compliance: Fully meets or exceeds OSHA Standard 1926.502 when installed in strict compliance with the manufacturer's provided guidelines.
