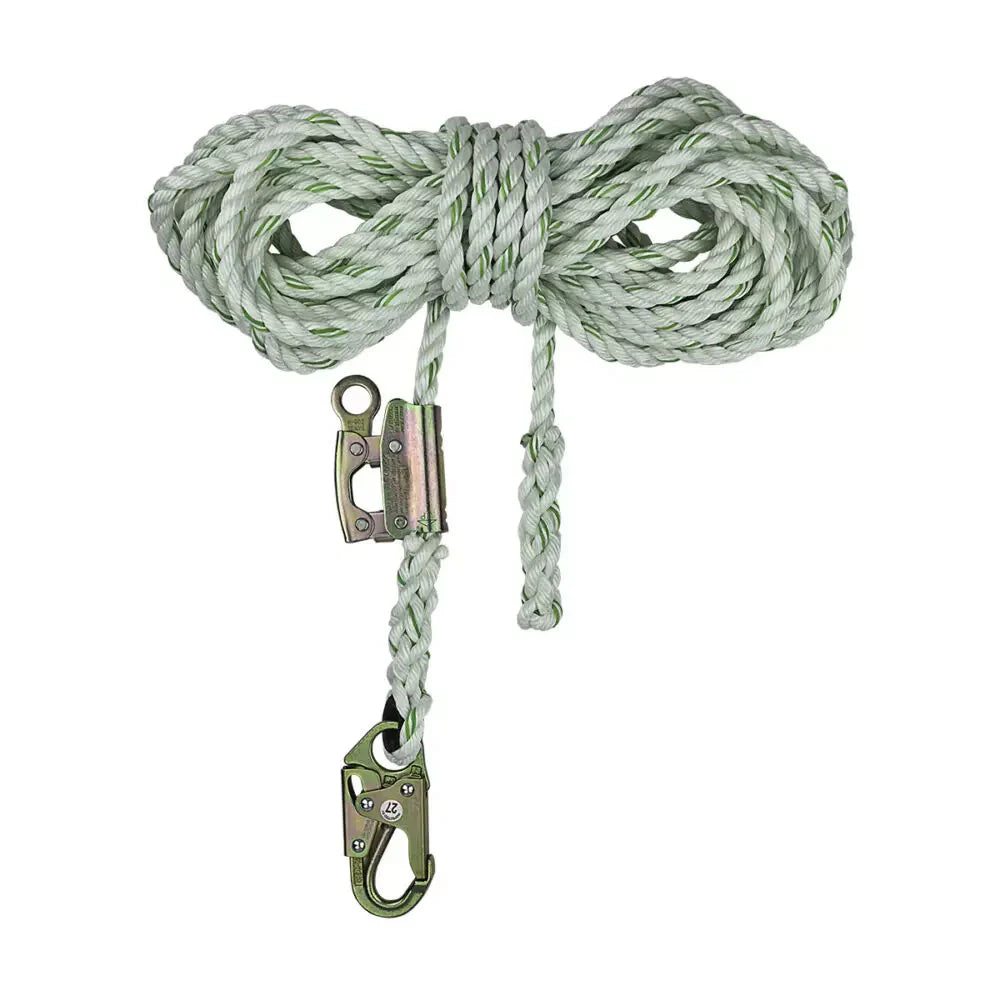

50 ft. Vertical Lifeline Assembly with Manual Rope Grab

The SunWorks Vertical Lifeline Assembly is a comprehensive, heavy-duty fall protection system engineered for reliable vertical fall arrest. This all-in-one safety kit includes 50 feet of high-strength premium polyester rope, a rugged double-action steel snap hook, and an integrated, non-removable manual steel rope grab to ensure secure and controlled vertical mobility.

Key Features & Component Safety:

• High-Strength Rope Construction: Fabricated from 50 feet of 5/8″ thick, 100% premium polyester rope, delivering exceptional tensile strength and superior resistance to abrasion and environmental wear.

• Heavy-Duty Anchor Connection: Outfitted with an attached double-action forged steel snap hook featuring a robust 3,600 lbs. gate rating for ultimate connection security.

• Integrated Dual-Cam Rope Grab: Includes a permanently attached (non-removable) manual steel rope grab engineered with a quick-locking dual-cam system. This design prevents accidental detachment from the lifeline while ensuring instantaneous lockup during a fall event.

• Turnkey Safety Solution: Pre-assembled and ready for rapid deployment, reducing setup times and minimizing the risk of component mismatch on the job site.

Technical Specifications:

• Condition: New

• Lifeline Length: 50 ft.

• Rope Diameter: 5/8 inch

• Lifeline Material: 100% Premium Polyester Rope

• Lifeline Termination: Double-Action Forged Steel Snap Hook (3,600 lbs. Gate Strength)

• Rope Grab Mechanism: Non-Removable, Quick-Locking Manual Steel Rope Grab with Dual-Cam

Weight Capacities & Regulatory Compliance:

• Maximum Work Load:

  • 420 lbs. under OSHA standards

  • 310 lbs. under ANSI standards

• ANSI Compliance Standard: Z359.12 (Hardware/Connectors)

• OSHA Compliance Standards: Fully meets or exceeds OSHA 1910.66 and 1926.502 regulations when utilized strictly according to the manufacturer's provided instructions.
